Five Axis Laser Cutting

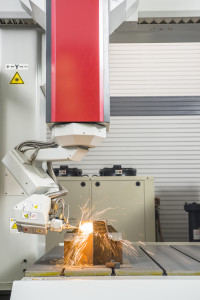

Bassett’s multiple open architecture 4000 watt, 5 axis lasers allows for cutting and trimming of formed sheet metal parts, formed tubes, assemblies, large tubes to 30″ in diameter, drawn parts, prototypes and many configurations not previously able to be processed with traditional fabrication processes with extreme accuracy and repeatability. The 5 Axis CO2 laser allows Bassett engineers to work with our industry partners to quickly and cost effectively process large or small batch production and prototypes without the need for dedicated and costly tooling.

Specifications

  • Table size 122″ x 86.6″
  • Z Depth of 33.4″
  • Work Piece to 4,400 lbs
  • Tube Diameter to 30″

Materials Used
  • Steel
    (A36, A500, etc.)
  • Aluminum:
    (3003, 5052, 6061, 6063, etc.)
  • Stainless Steel:
    (303, 304, 316)

Quality Process and Certifications
  • ISO 9001:2015
  • AWS D1.1, D1.2 & D1.3 Welding
  • CWI (Certified Welding Inspector)
  • Statistical Process Control (SPC)
  • Just In Time (JIT) Compliant Delivery
  • Member AWS, AME, SAE, FMA

Preferred Drawing File Formats

 SolidWorks Files, Part, Assembly, Drawing, DXF, DWG, Adobe Photoshop Files, Adobe Illustrator Files, Template, Parasolid, IGES, STEP AP203/214, ACIS, VDAFS, VRML, STL, Catia Graphics, ProE Part, ProE Assembly, UGII, Inventor Part, Inventor Assembly, Solid Edge Part, Solid Edge Assembly, CADKEY, IDF, Rhino Files

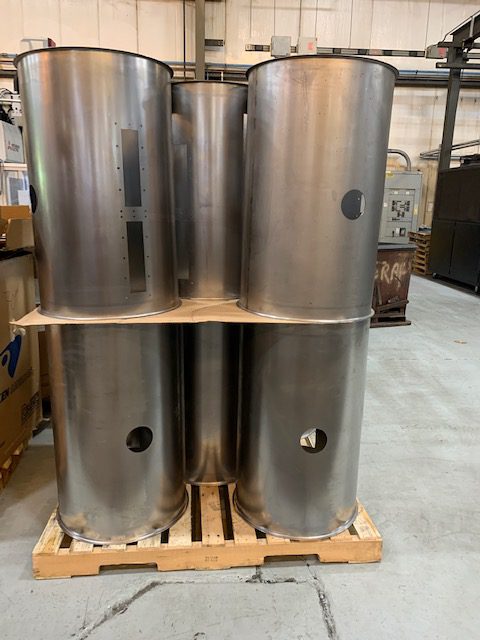

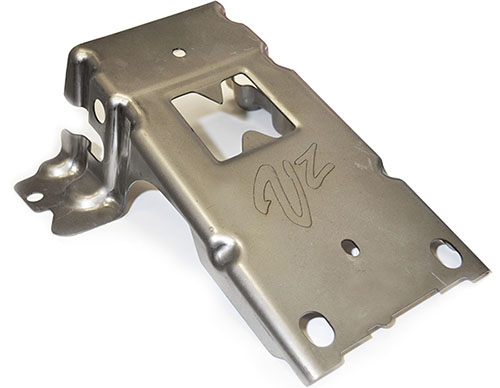

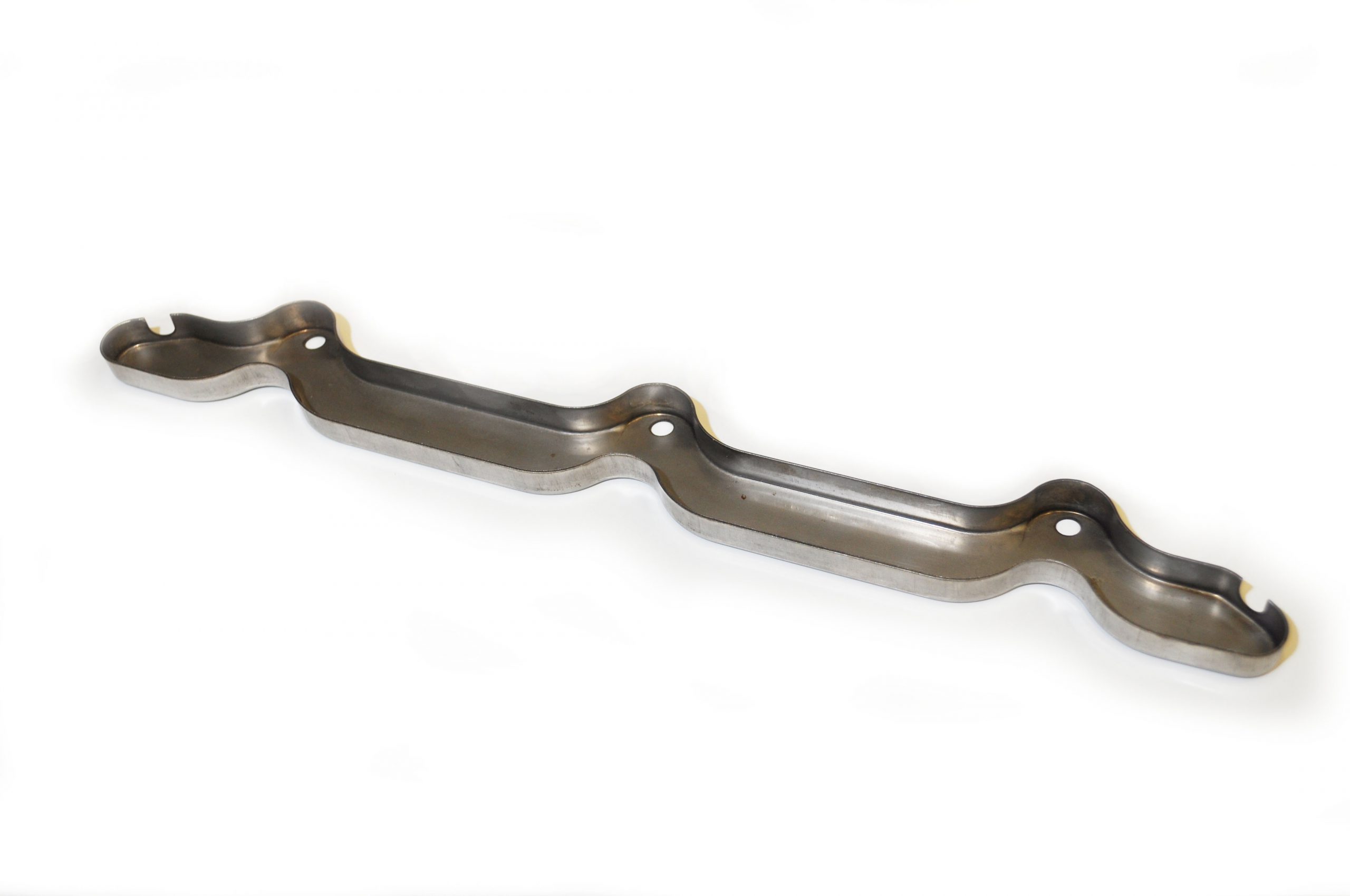

Image Gallery
