CNC Waterjet Cutting Services

Waterjet CNC cutting services. Capabilities include large format cutting sizes up to 275 in. long x 120 in. wide, with thickness up to12 in., pressure up to 90,000 psi and tolerances to +/-0.003 in. Dual dynamic head capabilities for lower costs, larger volumes and quicker turnaround. Parts in steel, aluminum, glass, stainless, copper, brass, marble, titanium, bronze, etc.

No heat affected zone, burr free cutting in an ISO 9001:2015 facility with additional services of sheet and tube laser cutting to 8.5″ dia, CNC tube bending and rolling to 8″ dia, MIG, TIG & robotic welding, press brakes to 350 ton x14 ft, CNC mills to 120″ travel and CNC lathes with multi heads and live tooling. Industries served include agriculture, health care, construction, Defense, job shops, laboratory equipment, marine, military, nuclear, semiconductor and signage.

Reverse engineering, CAD services and 24 hr service available.

Specifications

Materials Cut
  • Steel
  • Aluminum
  • Stainless Steel
  • Copper
  • Brass
  • Titanium
  • Bronze
  • Marble
  • Glass
  • Rubber
  • Foam
  • Tile
  • etc

Plate Size

 Up to 275″ length x 120″ width

Plate Thickness

 Up to and including 12 inch thick material

Tolerance

 +/- 0.003 inches

Value Add

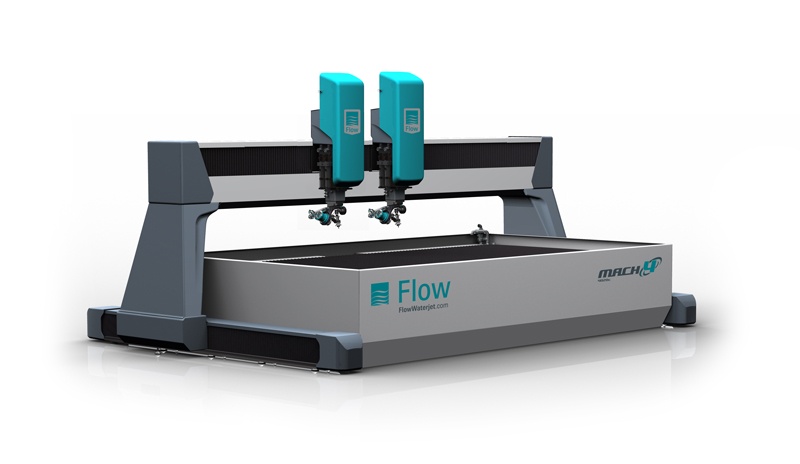

 Dual dynamic head capabilities for lower cost, larger volumes and quicker turn around

Advantages
  • No heat affected zone
  • Burr free cutting

Production Runs

 From prototyping to high volume production

Designing Assistance

 Reverse engineering and full CAD assistance

Quality Process and Certifications
  • Certification ISO 9001:2015
  • AWS D1.1, D1.2 & D1.3 Welding
  • CWI (Certified Welding Inspector)
  • Statistical Process Control (SPC)
  • Member AWS, AME, SAE, FMA
  • Just In Time (JIT) Compliant Delivery

Preferred Drawing File Formats

 SolidWorks Files, Part, Assembly, Drawing, DXF, DWG, Adobe Photoshop Files, Adobe Illustrator Files, Template, Parasolid, IGES, STEP AP203/214, ACIS, VDAFS, VRML, STL, Catia Graphics, ProE Part, ProE Assembly, UGII, Inventor Part, Inventor Assembly, Solid Edge Part, Solid Edge Assembly, CADKEY, IDF, Rhino Files

Secondary Services
  • Sheet and tube laser cutting to 8.5″ diameter
  • CNC tube bending and rolling to 8″ diameter
  • MIG, TIG and robotic welding
  • Press brakes to 350 tons x 14 feet
  • CNC mills to 120″ travel and CNC lathes with multi heads and live tooling

Industries Served

 At Bassett, we take on all jobs that fit our capabilities, for any industry. Below are examples of industries we have served in the past. We have created true turnkey components, weldments and assemblies for, but not limited to the following industries:
Agricultural, Aerospace, Healthcare, Construction, Defense, Job shops, Laboratory equipment, Marine, Military, Semiconductor, Nuclear and Signage.

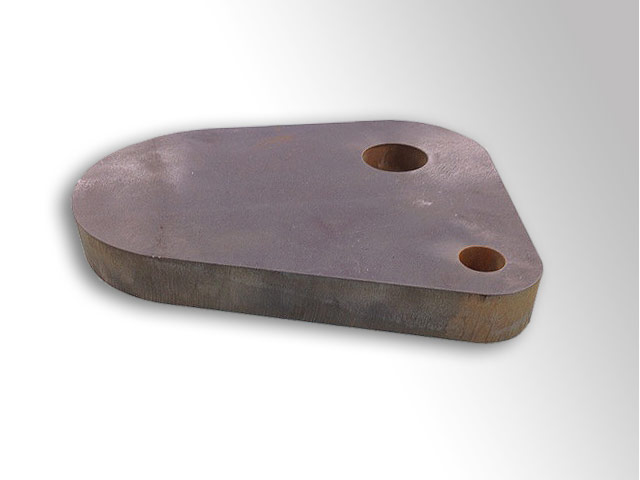

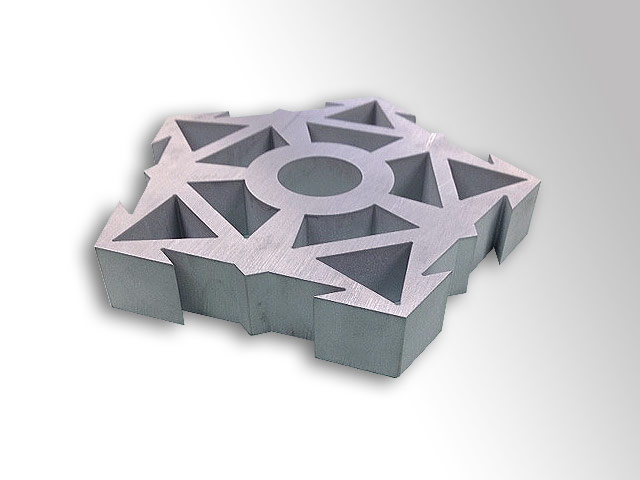

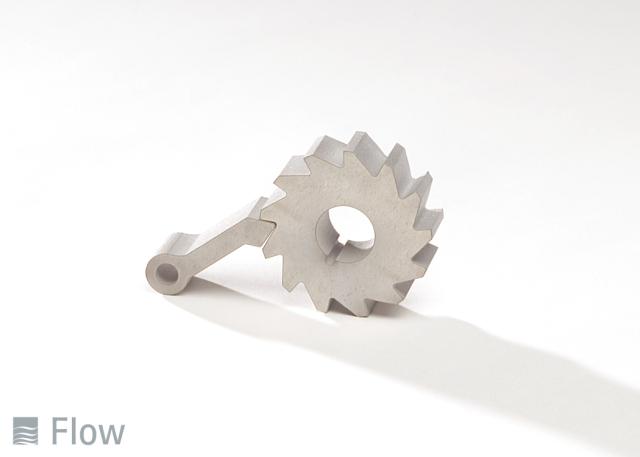

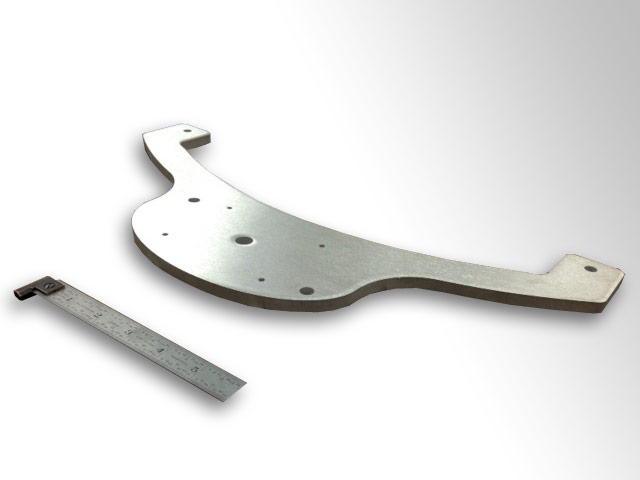

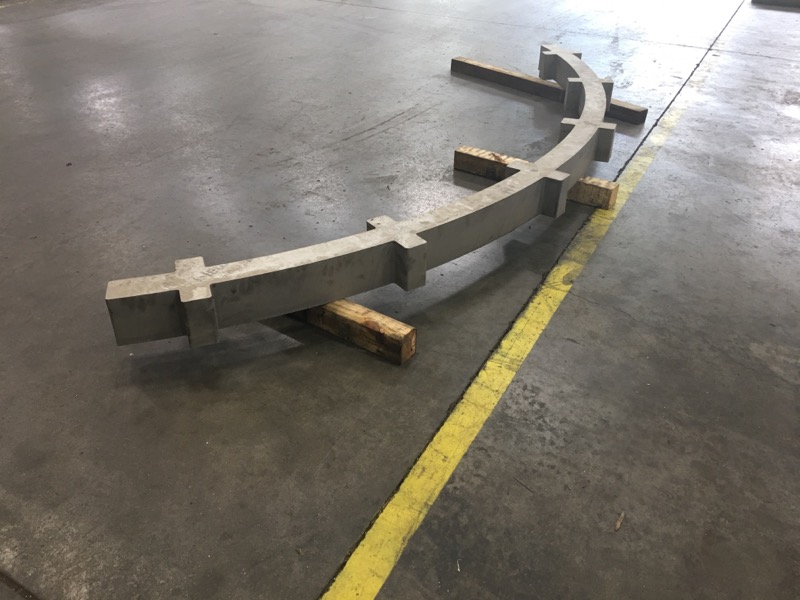

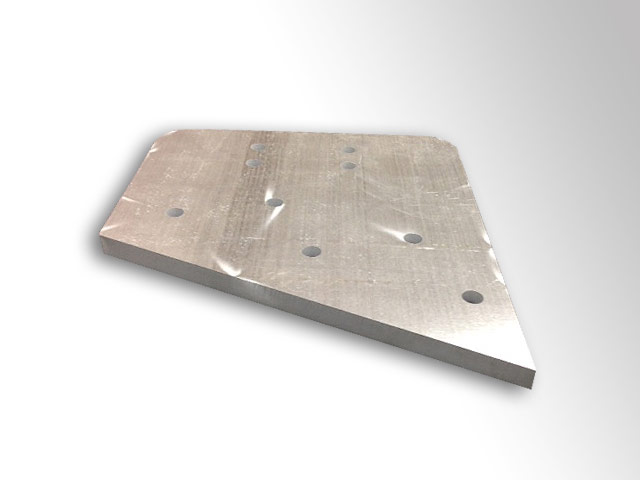

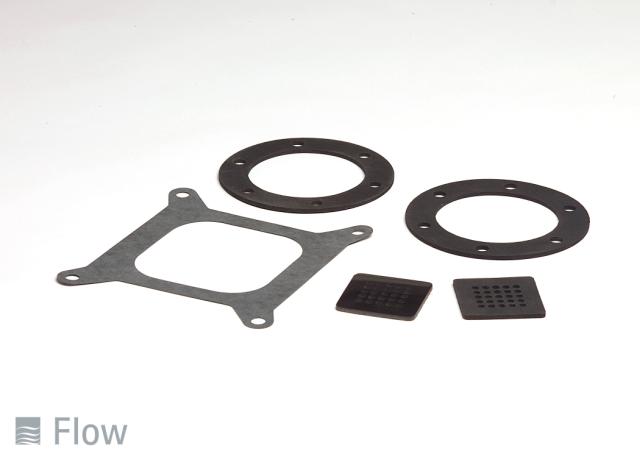

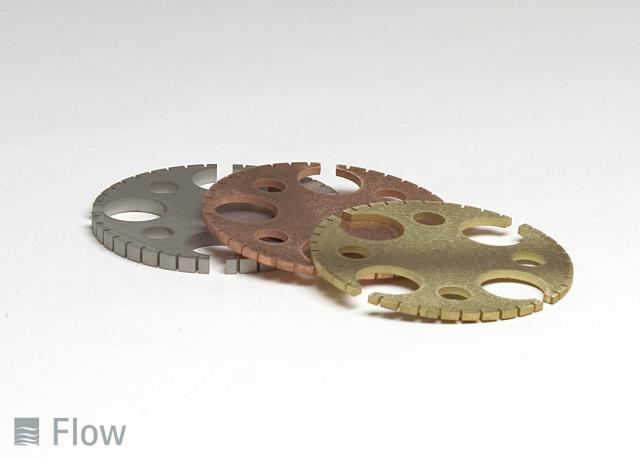

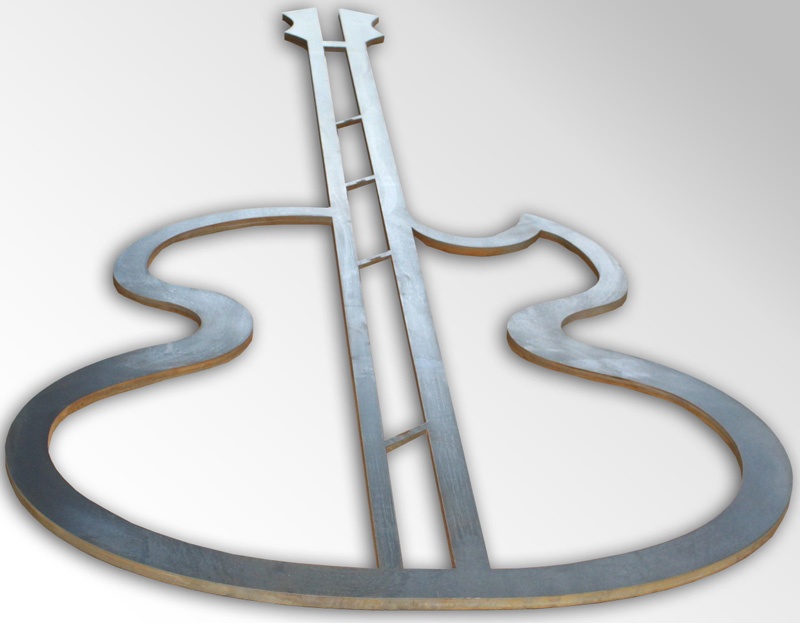

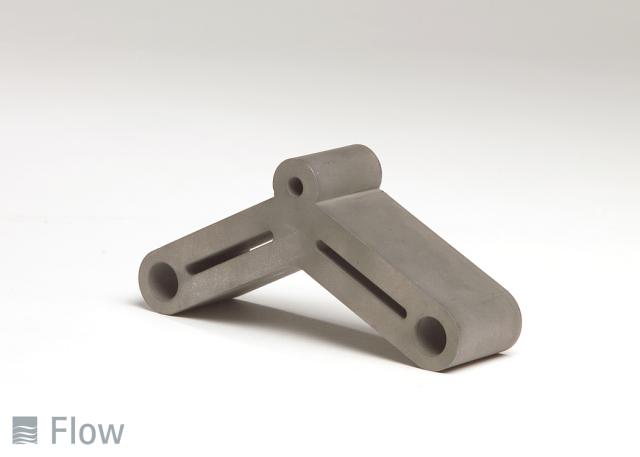

Image Gallery
